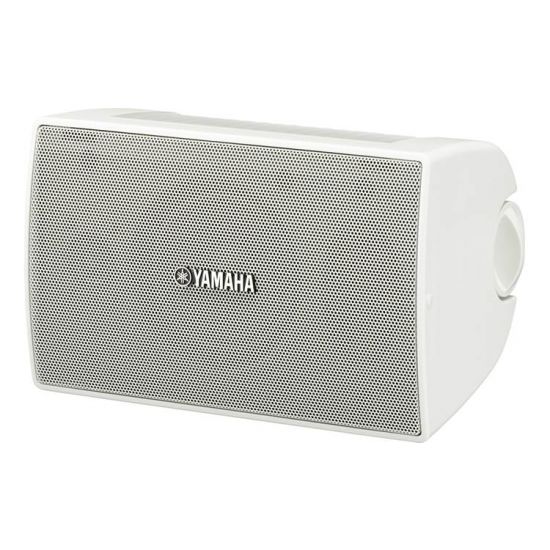

Yamaha | VS6 Loudspeaker White

Yamaha - VS6 luidspreker White

The Perfect Complement
A superb blend of aesthetic simplicity and functional sophistication, the VS Series delivers high quality sounds in a variety of indoor and outdoor settings, particularly locations where interior design is a consideration.Let the VS Series be the perfect complement to your sonic needs.- Compact surface mount speakers with superior sound quality and sleek, functional design. - Series comprises two models: the VS6 (6.5" woofer) and VS4 (4" woofer) - both models feature a 1" balanced dome tweeter and are available in Black or White. - Waterproof construction meeting the IEC60529 IPX3 rating requirements for outdoor usage. - Internally mounted transformers allowing operation in 70V or 100V distributed sound systems. - Dedicated, color-matched steel U-bracket enclosed for horizontal or vertical installation. - Paintable enclosure and grill to match any decor. - Overload protection circuit provided to protect speaker components.

 Features:

• Highly adaptable surface mount speakers
•  Flexible mounting for easier configuration
•  Paintable speakers for your unique room design
•  Selectable 70V/100V for distributed lines, or low impedance
•  Designed for both indoor and outdoor use (IP rating X3)
•  Black and white models available
•  Dedicated, color-matched steel U-bracket enclosed for horizontal or vertical installation

Specifications

• System Type: 2-way, Bass-reflex
• Components LF: 6.5" cone
• HF: 1" balanced dome tweeter
• Frequency Range (-10dB): 80Hz-20kHz
• Crossover Frequency: 15kHz
• Coverage Angle (Horizontal x Vertical): 90° x 90°
• Nominal Impedance: 8Ω
• Transformar Taps 70V: 25W, 12.5W, 6.3W, 3.1W
• 100V: 25W, 12.5W, 6.3W
• Power Rating NOISE: 25W
• PGM: 50W
• MAX: 100W
• Sensitivity (1W, 1m): 90dB SPL
• Maximum SPL (Caluculated, 1m): 110dB SPL
• Connectors: 2 pairs of barrier strip (parallel-wired)
• Material, Finish, Color: Black, White
• Dimensions (W x H x D): 190mm x 308mm x 219mm (7.5" x 12.1" x 8.6")
• Net Weight: 2.8kg (6.2lbs)
• Packaging: Pair
• IP Rated: IPX3
