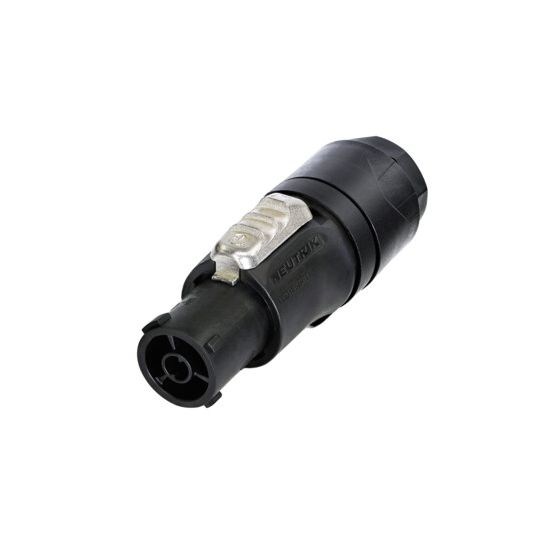

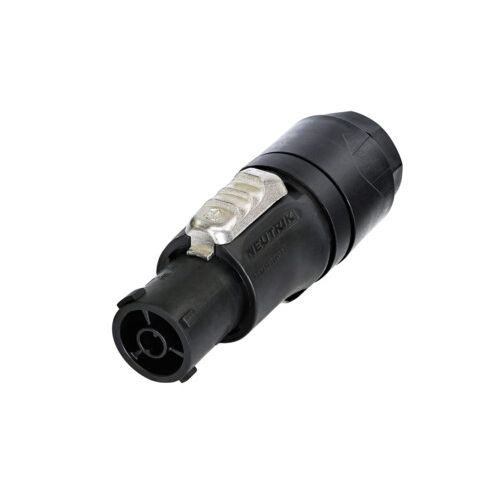

Neutrik | NAC3FX-W-TOP-L-D - PowerCON TRUE1 F [100 pieces]

Neutrik | NAC3FX-W-TOP-L-D - PowerCON TRUE1 TOP Female IP65 [100 pieces]

Locking female cable connector for big power cord with outer diameters from 10–16 mm (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3, SOOW 14/3 and SJOOW 12/3. Certified according to EN/UL & CSA 60320-1.

Keyed for Power IN, screw terminals, IP65, up to 16 A (USA: 20A).

The powerCON TRUE1 TOP is a single-phase connector for outdoor applications with breaking capacity (CBC) for outdoor applications.

Features

• IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
• Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches)
• Heavy duty sealed power connector for harsh and demanding environment
• IP65 rating and approved for outdoor protection
• Uses high impact UV-resistant materials
• Extremely robust and reliable cable retention
• TOP True Outdoor Protection
• Lockable, single phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)
• Superior NEUTRIK quality standard

Product Title: NAC3FX-W-TOP-L
Connector series: powerCON TRUE1 TOP

Electrical:

• Dielectric strength: 2.8 kVac
• Insulation resistance: > 0.1 GΩ
• Number of electronical contacts: 2 + PE
• Rating Europe: IEC EN 60320-1: 16 A 250 V AC
• Certified with cable types: H07RN-F3G2.5
• Rating USA: UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC
• Certified with cable types:
  • SOOW 12/3, SOOW 14/3
  • SJOOW 12/3

Mechanical:

• Cable O.D.: 10 – 16 mm (0.39 – 0.63 inches)
• Lifetime: Typically 5,000 mating cycles
• Wire size (mm²): 2.5 mm²
• Wire size (AWG): 14 – 12 AWG

Material:

• Contact plating: 2 µm Ag
• Contacts: Bronze (CuSn0.2)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: ZuAl4Cu1
• Shell: Polyamide (PA 6.6 30 % GR)
• Strain relief: Polyacetal (POM)

Environmental:

• Flammability: UL 94 V-0
• Protection class: IP65, UL50E enclosure type 4 (mated)
• Temperature range: -30 °C to +80 °C
