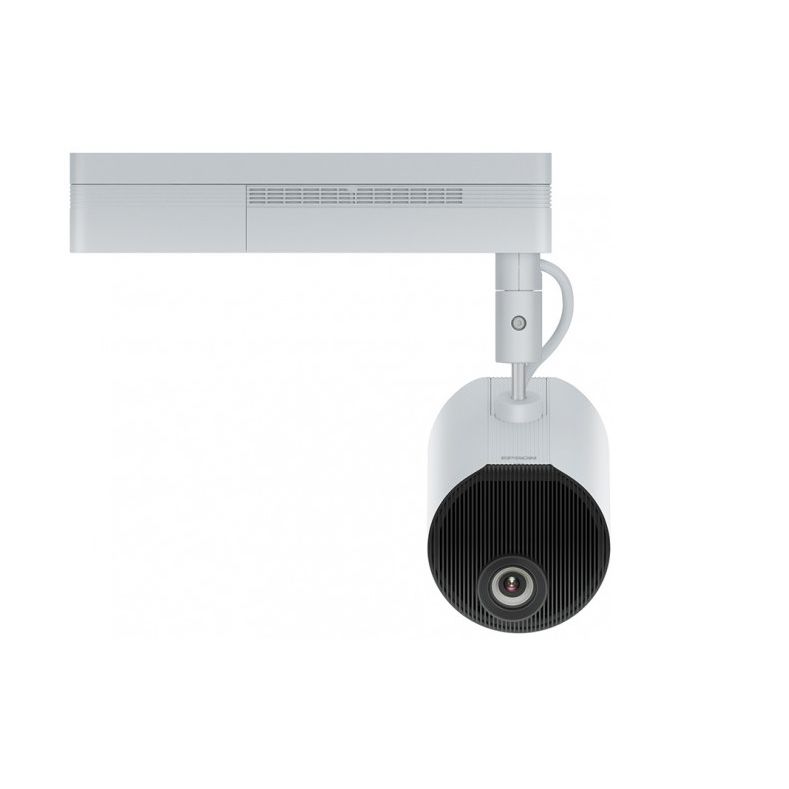

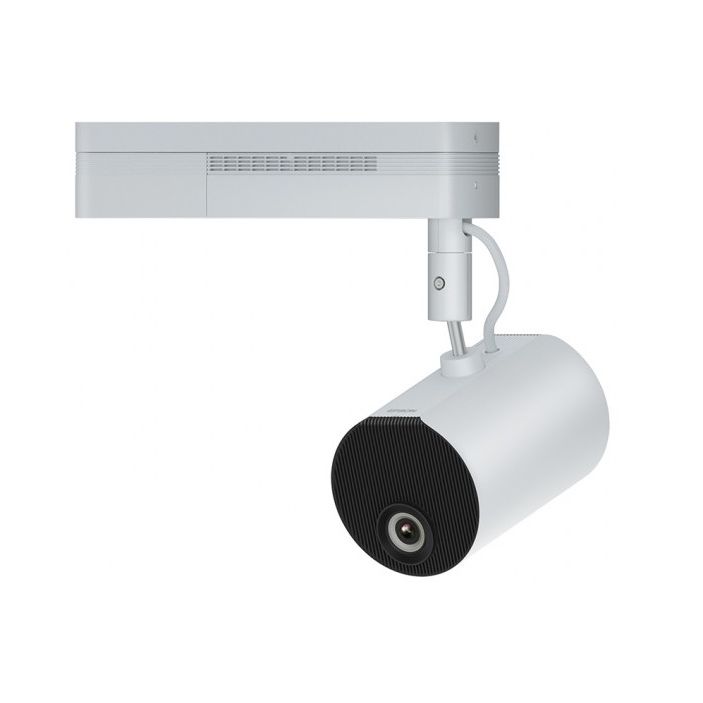

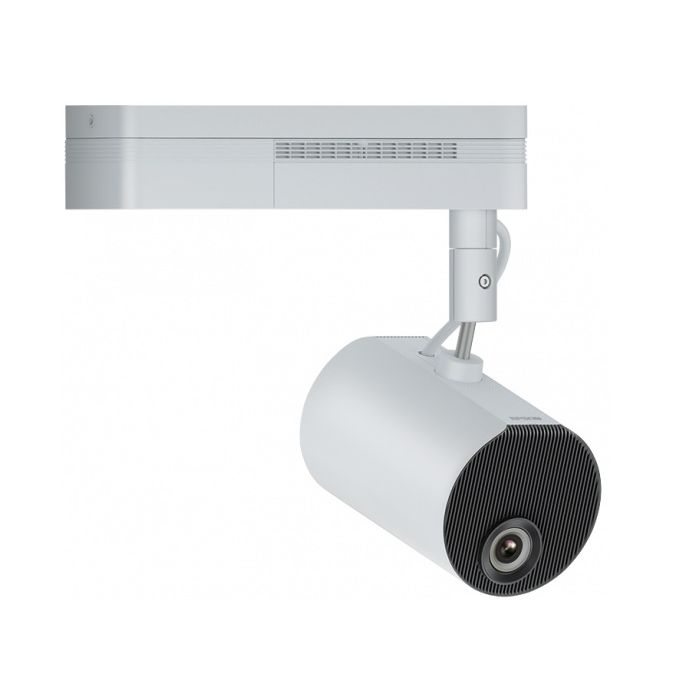

Epson - Laserprojector LightScene EV-100, white, WXGA

Epson - LightScene EV-100

Add movement and life to your retail displays or exhibitions with a low visual noise projector that blends in beautifully to any environment, and blurs the line between lighting and projection with 2,000-lumen brightness and WXGA sharpness.

A discreet attention-grabber

The LightScene EV-100 allows you to to create instantly appealing visuals with sharp WXGA resolution and 2,000-lumen brightness. Yet thanks to its low visual noise white casing, it can be used where a traditional projector would stand out, such as window displays and as part of exhibitions.

Easy to program and use

The EV-100 comes with Epson Projector Content Manager Software for quick, easy set-up without specialist installation. Playlists can easily be loaded via SD Card and changed using remote control by employees without the need for a computer. The projector can also use advanced techniques such as edge-blending to achieve stunning results in larger spaces that require multiple-unit installations.

Simple, flexible implementation

A light, flexible design means the EV-100 can be installed in a variety of ways, from a traditional ceiling mount to a freestanding floor mount, or attached to an existing lighting track like a spotlight¹. It can also be mounted at and project from any angle, including portrait. The projector can be used as a traditional spotlight for when simple lighting effects are needed.

Fit and forget reliability

A five-year, 20,000-hour warranty, coupled with Epson's durable, reliable inorganic phosphor wheel technology means that EV-100 projectors can be installed and forgotten about, and don't require regular maintenance.

Key features:

• Discreet signage projector: Low visual noise white casing won't grab the spotlight
• Sharp, vivid projection: 2,000-lumen brightness and detailed WXGA resolution
• Flexible installation: Can be ceiling-mounted, floor-standing or attached to a lighting track
• Easy playlist loading: Playlist can be loaded from an SD Card without the need for a computer
• Fit and forget reliability: Durable Epson technology supported by a five-year 20,000-hour warranty

Technology

• Projection System: 3LCD Technology
• LCD Panel: 0.59 inch with C2 Fine


• Colour Light Output: 2,000 Lumen- 1,000 Lumen (economy) in accordance with IDMS15.4
• White Light Output: 2,000 Lumen - 1,000 Lumen (economy) in accordance with ISO 21118:2012
• Portrait Colour Light Output: 2,000 lm
• Portrait White Light Output: 2,000 lm
• Resolution: WXGA, 1280 x 800, 16:10
• Aspect Ratio: 16:10
• Contrast Ratio: 2,500,000 : 1
• Native Contrast: 1,200 : 1
• Light source: Laser
• Laser Light source: 20,000 Hours Durability High, 30,000 Hours Durability Eco
• Keystone Correction: Manual vertical: ± 45 °, Manual horizontal ± 40 °
• Colour Reproduction: 16.77 million colours

Optical

• Projection Ratio: 1.38 - 2.19:1
• Zoom: Motorized, Factor: 1 - 1.58
• Projection Lens Zoom Ratio: 1.38 - 2.19 : 1
• Lens: Optical
• Image Size: 30 inches - 133 inches
• Projection Distance Wide: 0.9 m - 4 m
• Projection Distance Tele: 1.4 m - 6.3 m
• Projection Distance Wide/Tele: 0.88 m - 6.34 m
• Projection Lens F Number: 1.51 - 1.92
• Focal Distance: 18.2 mm - 28.4 mm
• Focus: Motorized

Connectivity

• Interfaces: USB 2.0 Type A, USB 2.0 Type B (Service Only), Wired Network, Wireless LAN b/g/n (2.4GHz), HDMI in, Stereo mini jack audio out, SD Card Slot, SD Card playback

Advanced Features

• Security: Wireless LAN security, Password protection
• Features: Digital zoom, Horizontal and vertical keystone correction, Quick Corner
• Video Colour Modes: Dynamic
• Projector control: via: Crestron (Network)

General

• Energy Use: 170 Watt, 118 Watt (economy), 0.3 Watt (standby)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions (default position): 530‎ x 470 x 250 mm (Width x Depth x Height)
• Dimensions: Projection Unit: Ø175‎ x 260 mm (Depth)
• Dimensions: Power Supply: 361‎ x 110 x 65 mm (Width x Depth x Height)
• Product weight: 5 kg
• Direct Mount weight: 1.9 kg
• Noise Level: Normal: 34 dB (A) - Economy: 22 dB (A)
• Temperature: Operation 5° C - 40° C, Storage -10° C - 60° C
• Humidity: Operation 20% - 80%, Storage 10% - 90%
• What's in the box: Cable cover, Direct mount unit, HDMI Cable Clamp, Power cable, Remote control incl. batteries,
• User's Manual Set
• Colour: White

Other

• Warranty: 60 months Carry-in or 20,000 h
