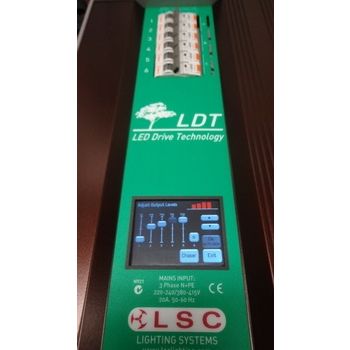

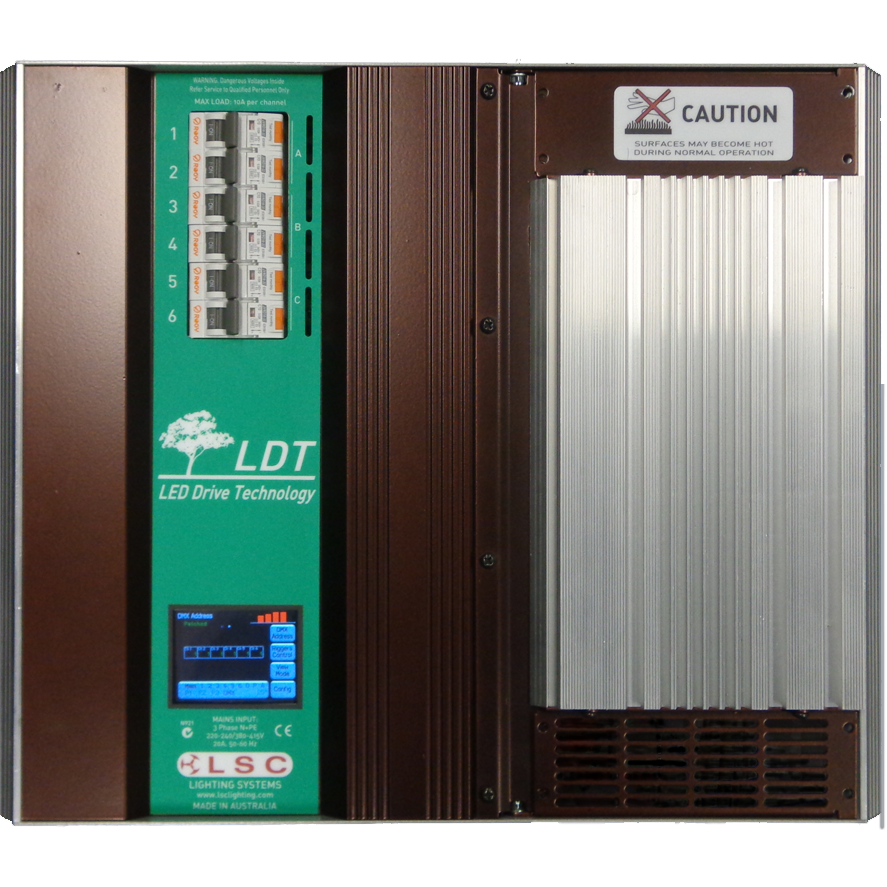

LSC - LDT6 LED-drive 6x10A Wallmount dimmer

LSC - LDT6 LED-drive 6x10A Wallmount dimmer

LDT was designed to provide professional, theatre-quality dimming through dimmable LED globes, suitable for retrofit installations and new fit-outs. LDT uses patented LED Drive Technology that improves control of dimmable LED globes.

Power Input

• Nominal: 220-240 Volts.
• 3-phase star (380-415V). 50-60Hz
  (Single phase operation possible. See section 2.4.1)
• Operating range : Typically 190-260V, 45-65Hz

Power Connection

• Five 35mm2 terminals.

Control Inputs

• DMX512 (1990) or DMX512-A (E1-11) and RDM (E1-20) via 3-pin screw terminals.
• Wall plate control via RJ45 connections. (Wall plates available separately)
• Panic input via 3-pin screw terminals.

Outputs

• Standard screw terminals provided. One 4mm2 for each output circuit plus one 16mm2 neutral terminal and one 16mm2 earth terminal for each group of 6 circuits.

Load Output per Channel

• 10A maximum load per channel, protected by 6kA rated thermal magnetic miniature circuit breaker (MCB).
  For LED only loads, it is recommended to limit the RMS current to 3A due to the inrush current.

Optional RCD protection

• One 3-phase unit for 6 and12-channel models.

Duty Cycle

• Rated at 100% across all channels simultaneously at 25°C ambient.

Construction

• Aluminium housing and zinc steel panels and polycarbonate labels.

Mounting

• The unit is wall mounted utilising keyhole cut-outs in 4 locations. A mounting template is provided with the unit.

Dimensions: 47 x 43 x 12cm
Weight: 12 kgs
