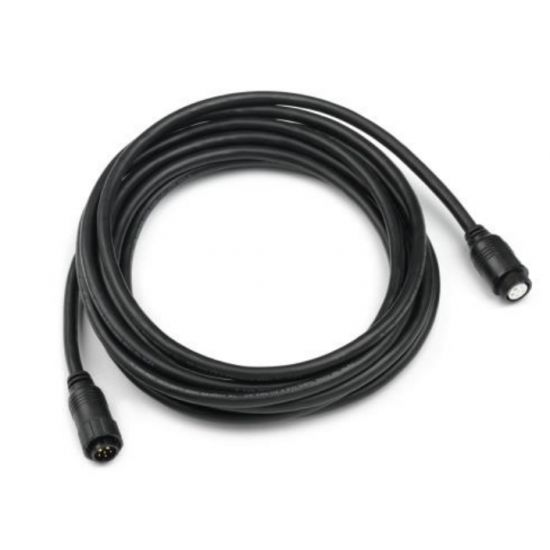

Martin - VC-Dot - Hybrid extension cable, M16 to M16, 1m

Martin - VC-Dot - Hybrid extension cable, M16 to M16, 1m

Extension cables to be used between P3 PowerPort and VC-Feeder, or between a VC-Feeder and the next VC-Feeder in the chain.

Extension cables to be used between P3 PowerPort and VC-Feeder, or between a VC-Feeder and the next VC-Feeder in the chain.

CONSTRUCTION

• Power Conductors (2): AWG14 (black & white)
• Data Conductors (2): AWG22 (green & red)
• Shielding: Around data conductor pair + drain wire AWG24
• Jacket: Environmental Protection PVC 65P (RoHS Compliant and UV Resistant)
• Cable Diameter: 7.3 mm (0.29 in)
• Connector Diameter: 20.0 mm (0.79 in)
• Color: Matt black
• Protection Rating: IP65
• RoHS Compliant

WEIGHT

• 0,103kg / m

CONNECTORS

• 6-pin custom IP65-rated
