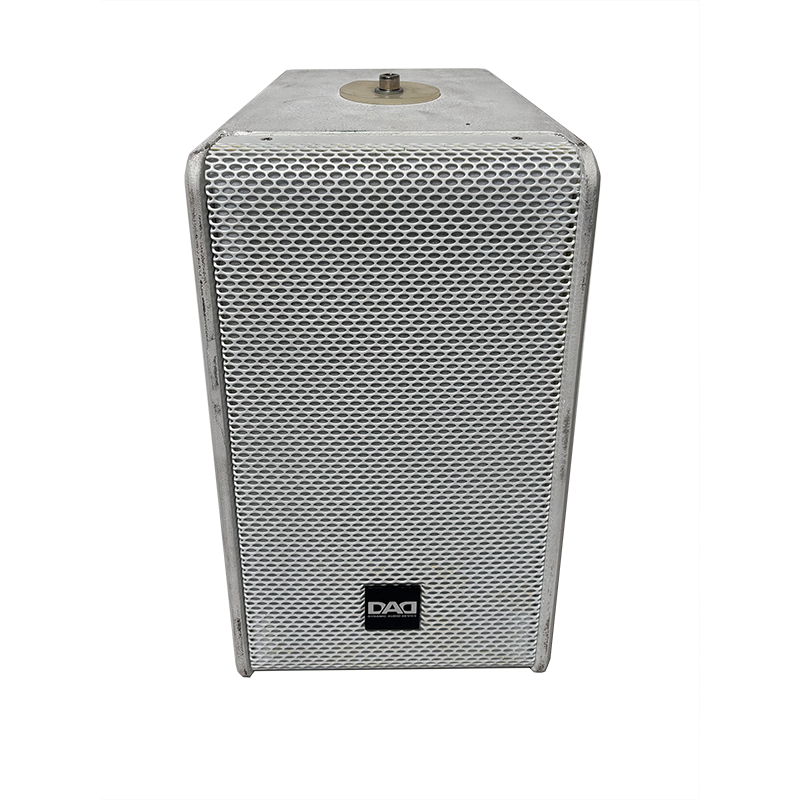

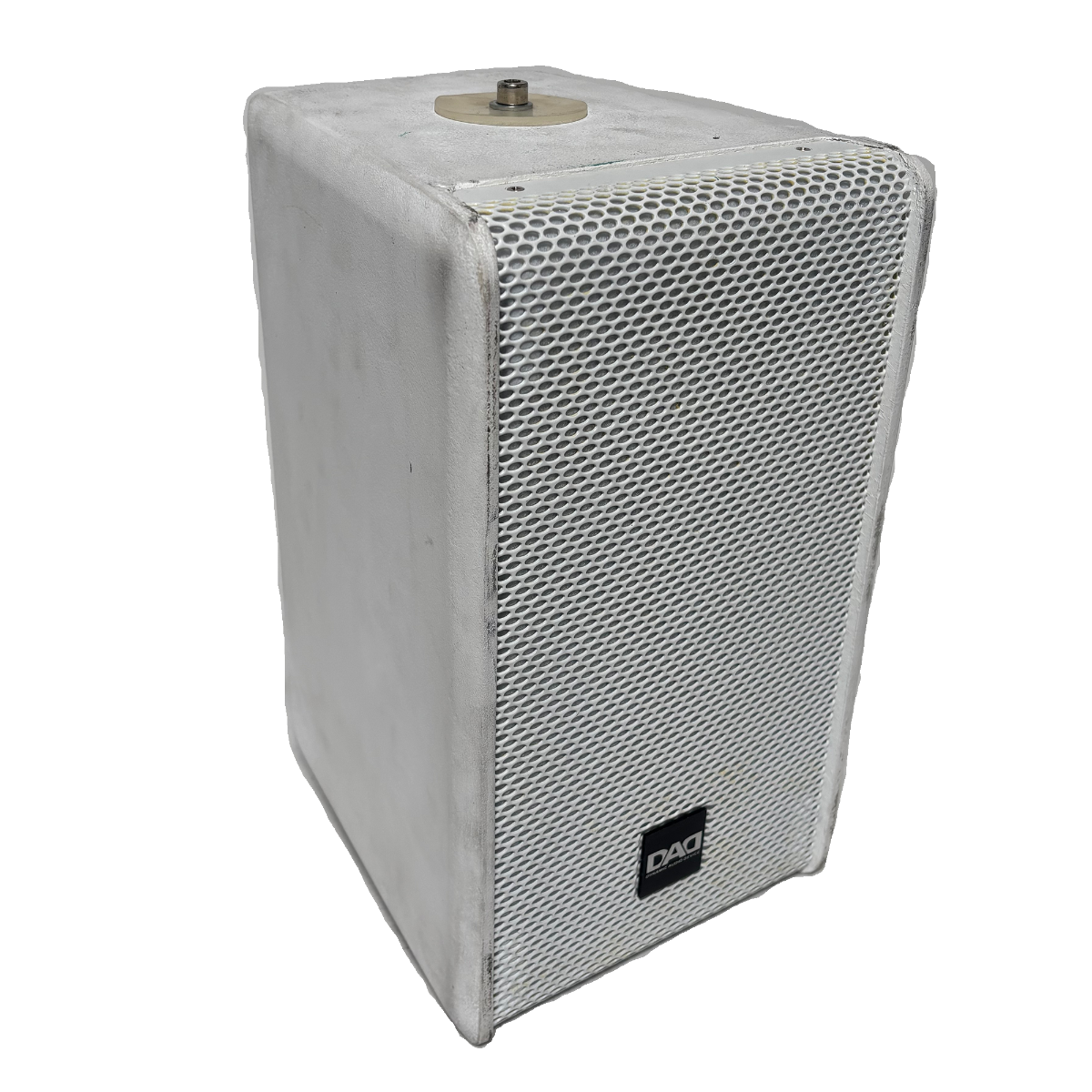

Used | DAD | ARK106MP White + Flyware (2 Pieces)

Used | DAD - ARK106MP White + Flyware (2 Pieces)

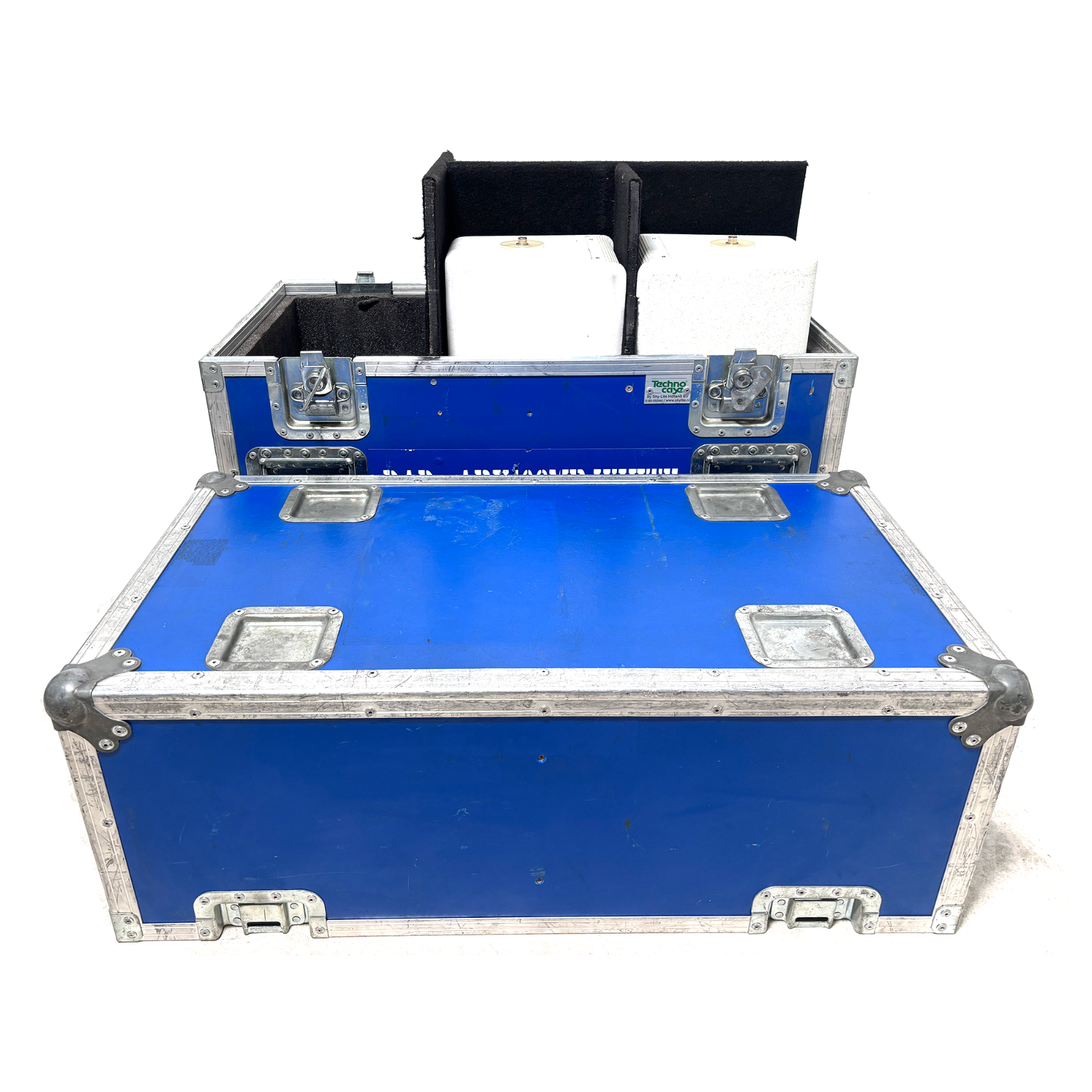

Flightcase: Included

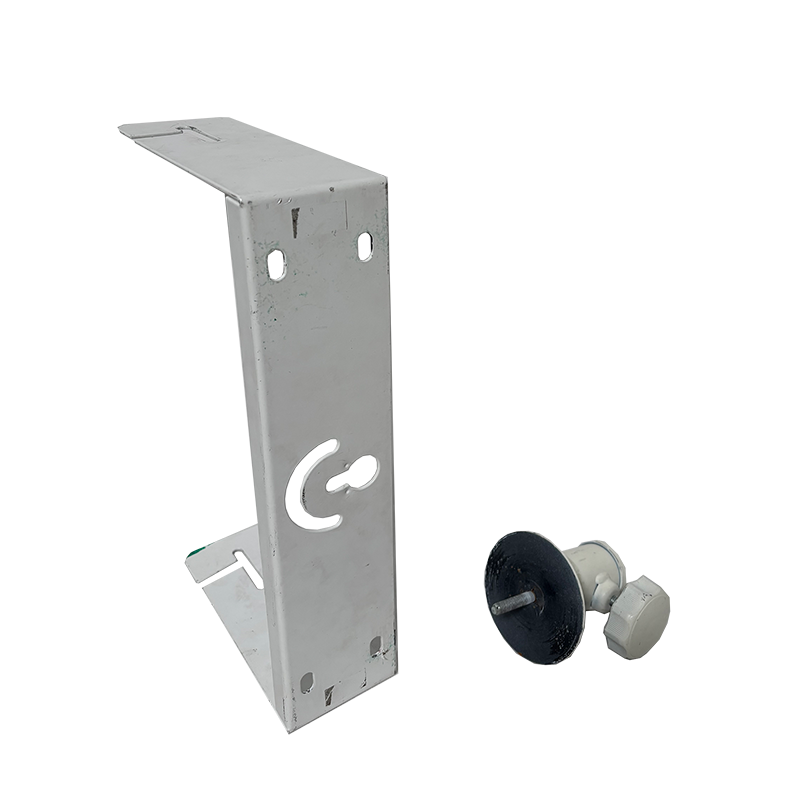

Accessories: 2x Polemount + 2x Fly bracket

Features

• Low frequency: 6'' woofer/1.5'' v.c.
• High frequency: 1'' driver / 1'' v.c.
• Frequency response: 75-18000 Hz (±3dB)
• ARK106 full range speakers are suitable for small installations or can be used as satellites in combination with the passive or active sub.
• The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
• Birch plywood enclosure.

Loudspeaker

• System type: Passive 2-way

Components

• Low frequency: 6'' woofer/1.5'' v.c.
• High frequency: 1'' driver/1'' v.c.

Features

• AES/program power: 120/240W
• SPL max: 116dB @1m (free field)

Acoustical specifications

• Sensitivity: 92dB @1W/1m (free field)
• Impedance: 16 Ohm
• SPL cont/peak: 110/116dB @1m (free field)
• Frequency response: 75-18000Hz (±3dB)
• Coverage angle HxV: 140x140°
• Cross over frequency: 2500Hz
• Protection: H.F. signal compression
• Suggested HPF range: 120/160Hz
• Recommended amplifier up to: 240W /16Ohm

Input/output connectors

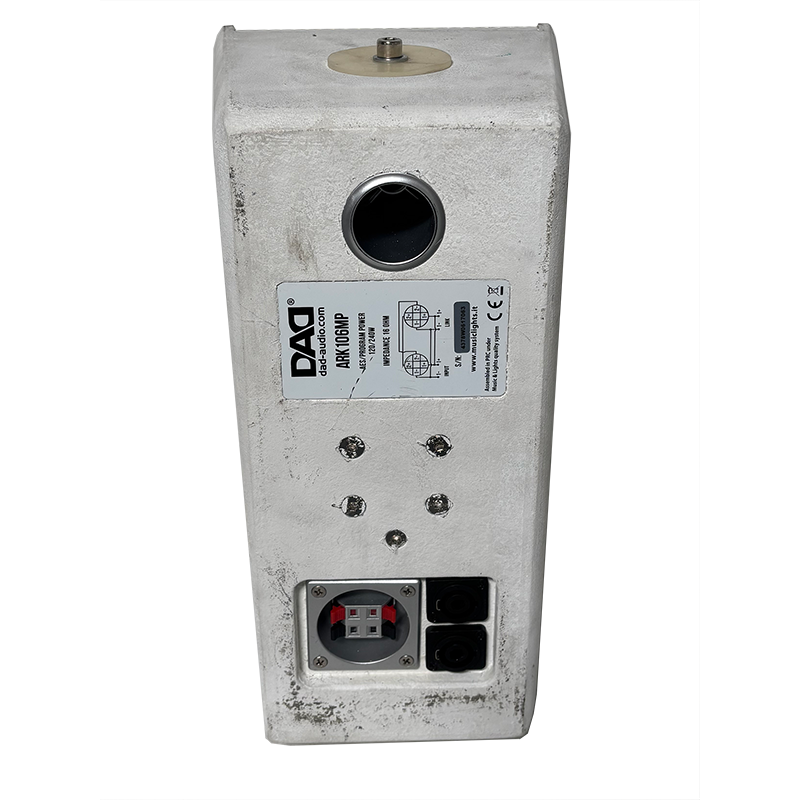

• Input signal: 4-pole terminal clamp IN/OUT

Cabinet construction

• Material: 12mm / 0.47'' plywood
• Suspension system: Wall brackets (included)
• Angle: 7.5° trapezoidal taper

Physical

• Dimensions (WxHxD): 201x340x233mm / 7.91''x13.39''x9.17''
• Weight: 6.5kg / 14.33lbs
