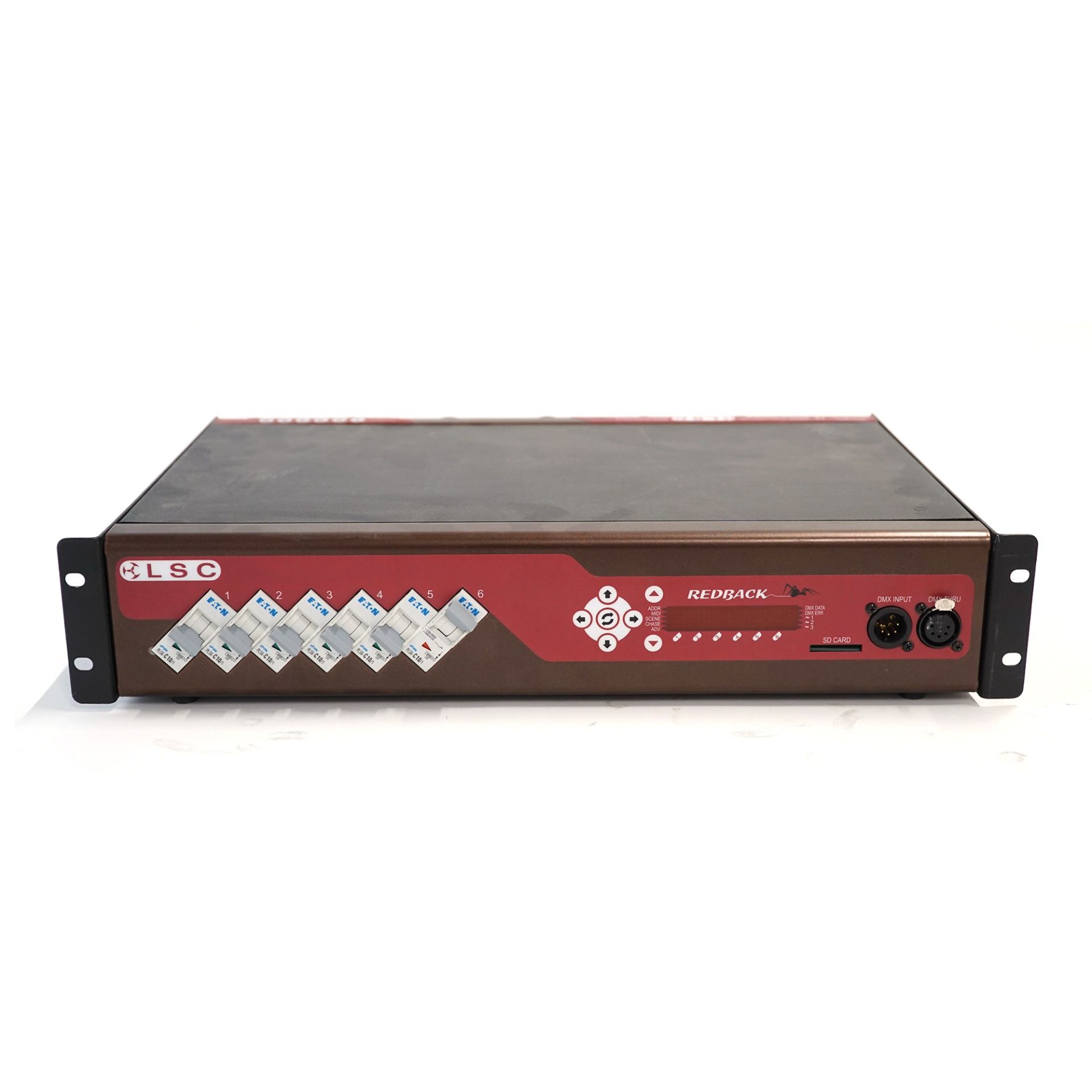

Used | LSC - Redback 6CH dimmerpack 6 x 10A Schuko out

Used | LSC - Redback dimmerpack 6 x 10A Schuko out

Condition: Good
Flightcase: Not included
Accessories: -

4mm2 cable not included

Redback is the world’s first portable rack mount dimmer system to provide full user control via the new RDM (remote device management) protocol. This allows the user to change any setting on the Redback from a controller at the other end of the DMX cable. No more crawling around backstage with a torch to check or change a setting!

Redback dimmers have a MIDI control option, to allow direct control from Music sequencer software, Keyboards or any other MIDI device. Great for bands, DJ’s, Duo’s and other MI or show automation applications.

Redback dimmers are certified as Product of Australia, guaranteeing that the units are fully designed, manufactured, assembled and testing in Australia, in LSC’s own factory.

Redback dimmers have built in chases and programmable scenes to allow full stand alone operation, without the need for any type of controller. Ideal for shop windows, Museums, Trade Show stands and the Retail Environment.

• 6-channel and 12-channel versions
• 10A per channel.
• 6kA rated thermo-magnetic miniature circuit breaker (MCB).
• LSC’s proprietary Current Control Technology (CCT) protects all MCB’s from nuisance tripping due to cold lamp inrush currents.
• 100% Duty Cycle rated across all channels simultaneously at 25˚C ambient.
• DMX512A compatible with link thru connector and input termination switch.
• LED Phase and DMX indicators.
• Variety of output connector options available.
• Optional MIDI input.
• High density design allows for compact installation in racking and touring frames/cases.
• RDM enabled to remotely set/change DMX start address, patch, MIDI, curves, min and max levels, scenes, chases and channel levels.
• Single or Three Phase Operation.
• CE and Ctick approved.
• 24 month warranty on parts and labour.
• Free for Life of Product software updates via SD card socket.
• Designed and manufactured in Australia by an Australian Owned company.

Channels: 6

Max Load per channel: 10Amps

Full 512 channel soft-patch: Yes

Programmable Scenes (with individual fade times): 6

Programmable chases (with Speed control): 6

DMX-512A input with RDM functionality: Yes

MIDI input: Optional

Selectable Fade curves per channel: 6

Virtual Faders for Manual Control of outputs: Yes

Thermo-magnetic Breakers: Yes

Three Phase or single phase operation: Yes

Programmable Min and Max level per channel: Yes

Bar graph LED level display for each channel: Yes

Phase and DMX indicators: Yes

Wall Mounting option: N/A

Output Connector Options

6 x 3-pin Australian GPO style connectors

6 x UK 15 A

1 x Wieland (Harting) 16-pin multi-pole connector

2 x Wieland (Harting) 16-pin multi-pole connectors

1 x 19-pin Socapex multi-pole connector

2 x 19-pin Socapex multi-pole connectors

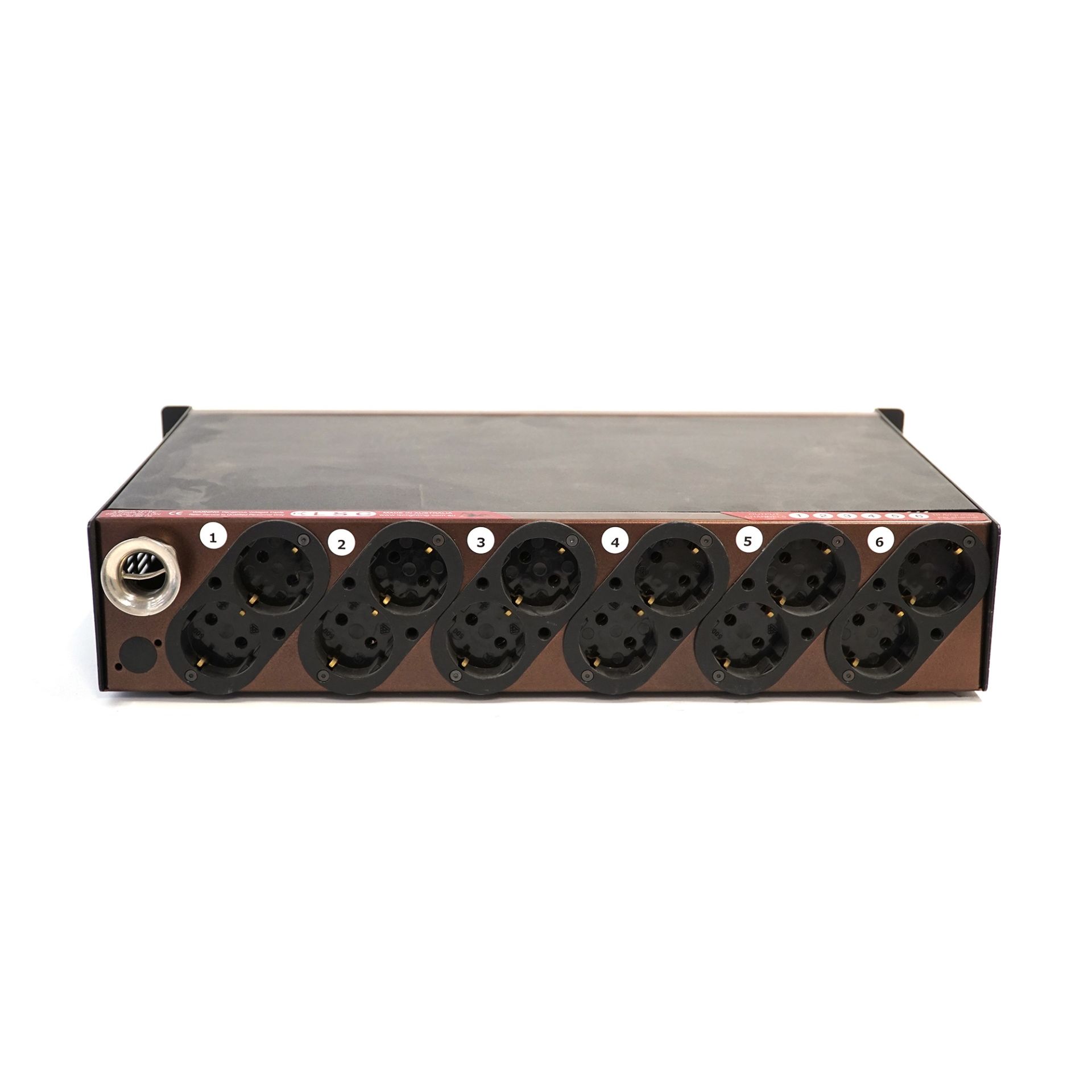

6 x single Shuko with cover

6 x double Shuko

6 x triple Swiss

Hardwire (terminal)

Power supply: Nominal 220-240 Volts. 3-phase star. 50-60Hz (Single phase operation possible) Operating range typically 190-260V, 45-65Hz. 100-120 Volt models available on request

Control Input: DMX512 (1990) or DMX512-A (E1-11) and RDM (E1-20) via Front panel mounted 5-pin AXR in and thru connectors

Case: 19" 2RU rackmount

Product Dimensions - W x D x H: 19" 2RU rackmount 19" 2RU rackmount

Product Weight (Packed) :8.0 kg
