Used | BSS | Soundweb 9088II

Used | BSS - Soundweb 9088II

Flightcase: Not included
Accessories: None

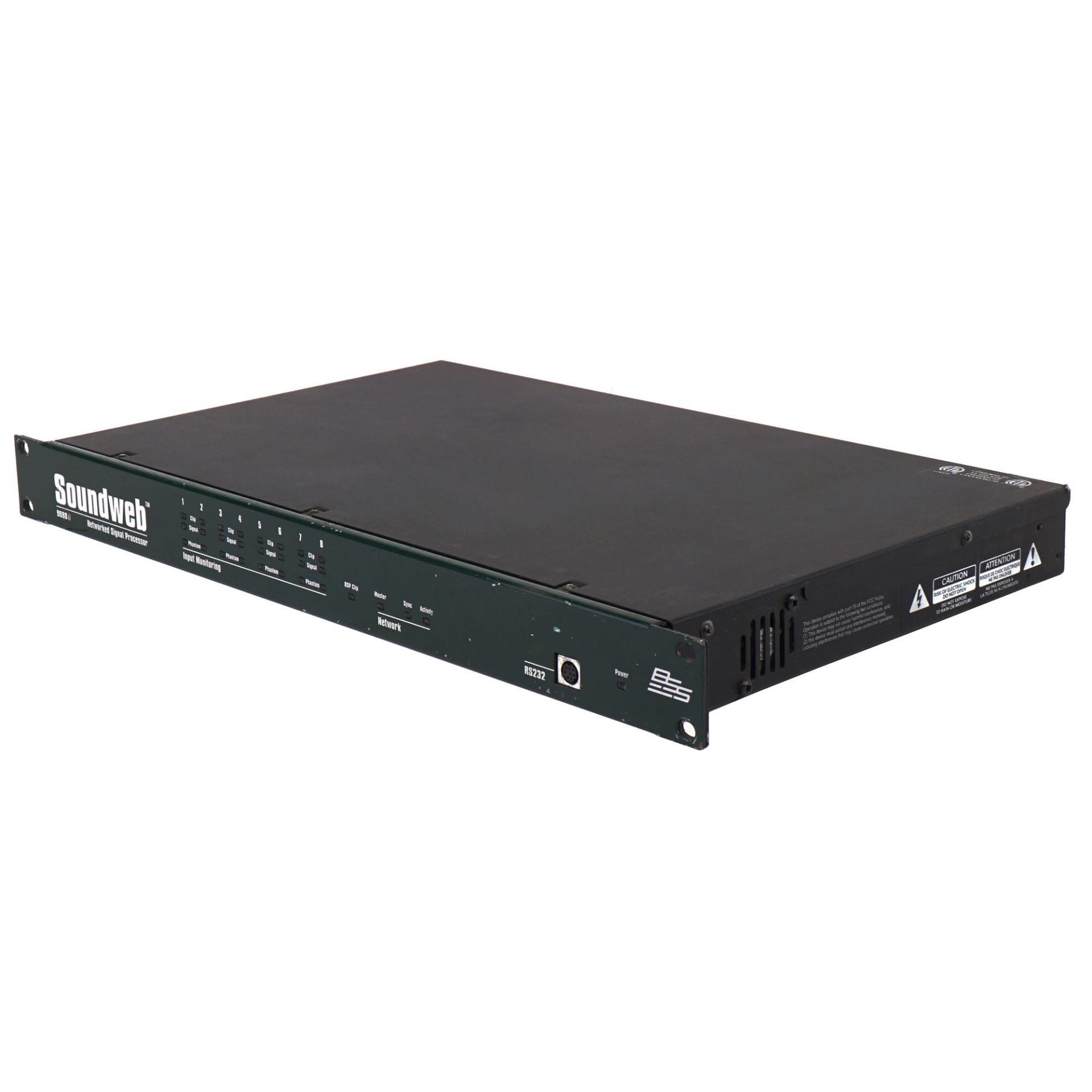

The 9088ii Networked Signal Processor forms the heart of the Soundweb system. In a single rack space unit, it offers 8 analogue audio inputs, 8 analogue audio outputs, 200 MIPS of digital signal processing, a pair of network jacks, and a variety of control options.

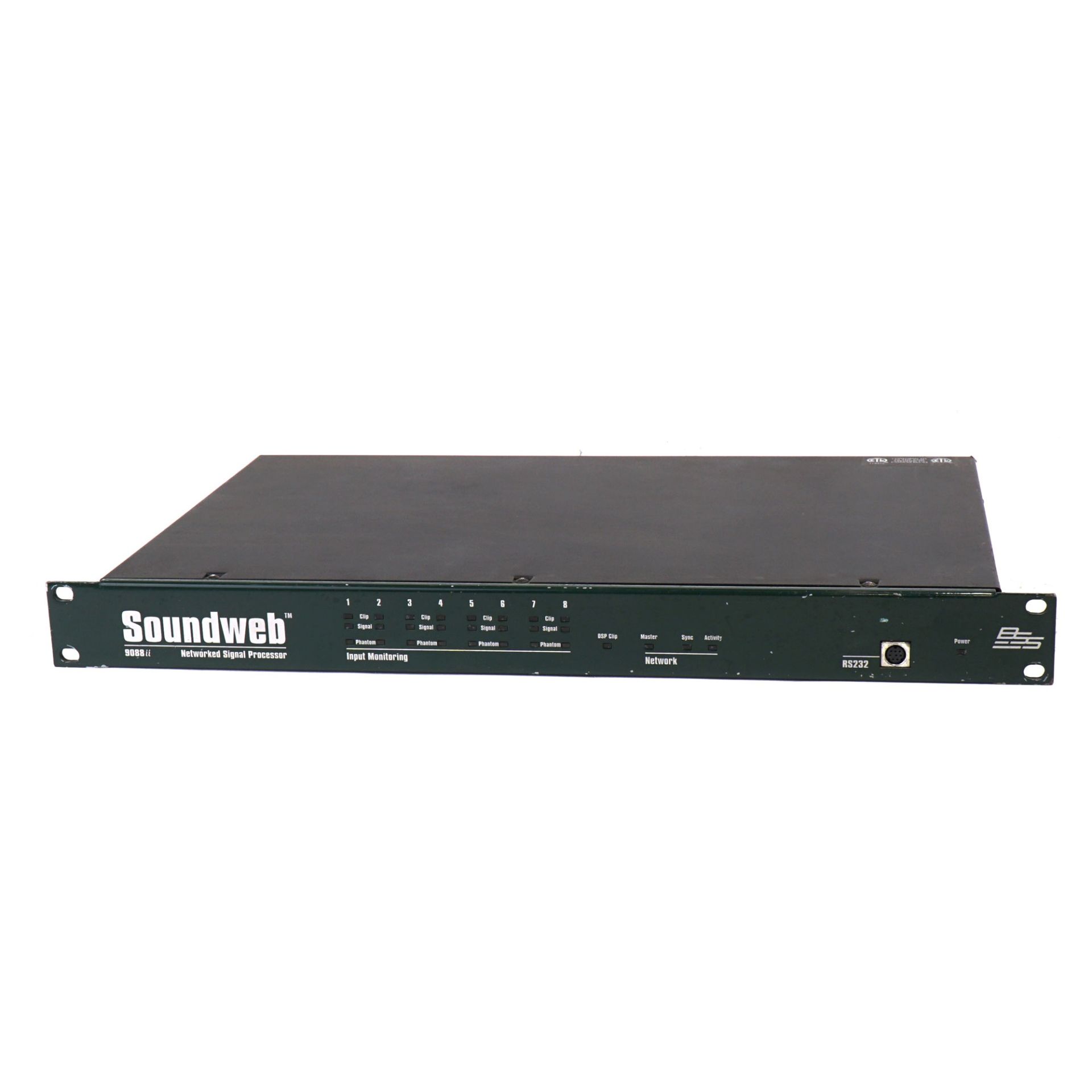

The front panel of the 9088iis has a number of LEDs to allow a quick view of activity on the audio inputs and on the network. It also has a mini-DIN connector for an RS-232 serial port: this is normally used to connect a PC for system setup and control.

Technical specifications

General

• Frequency response (+-0.5dB): 15Hz to 20KHz
• THD: <0.01% (20Hz to 0KHz, +10dBu output)
• Maximum output level: +20dBu
• Inter-channel Crosstalk: <-75dB
• Maximum network cable length: 300m/1000ft
• Power consumption: <35VA
• Mains Volts: 85-270V 50/60Hz

Line input card

• Input Impedance: 10kOhms
• Maximum input level: +20dBu (+8dBu with 12dB gain)
• Gain range: 0 or 12dB

Universal microphone/Line input card

• Input impedance: 3.5kOhms
• Maximum input level: +20dBu (with 0dB gain)
• Gain range: 0 to 70dB
• CMRR: >75dB at 1KHz
• Equivalent Input Noise (EIN): <-128dBu typ with 150 Ohms source
• Phantom power: 48V nominal

Control ports

• Logic output voltage: 0 or +5V unloaded
• Logic output impedance: 440 Ohm
• Opto output series impedance: 220 Ohms (isolated)
• Control input voltage: 0 to 4.5v
• Control input impedance: 4.7kOhms to +5V
• Opto Output current: 14mA max
• Opto output withstanding voltage (off): 80V max.
