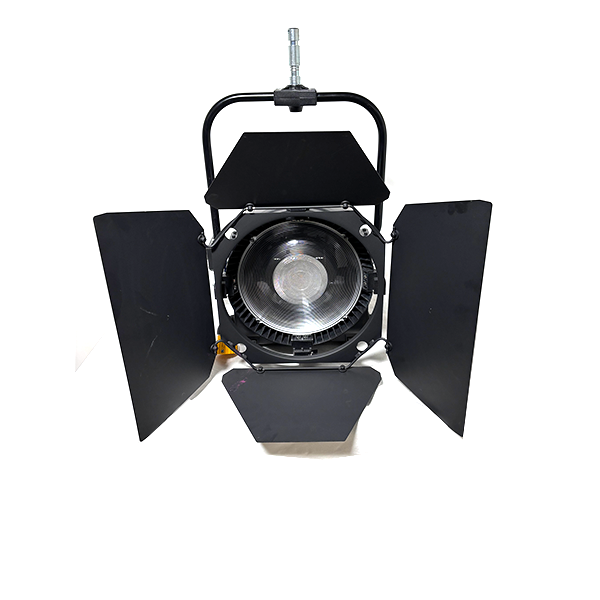

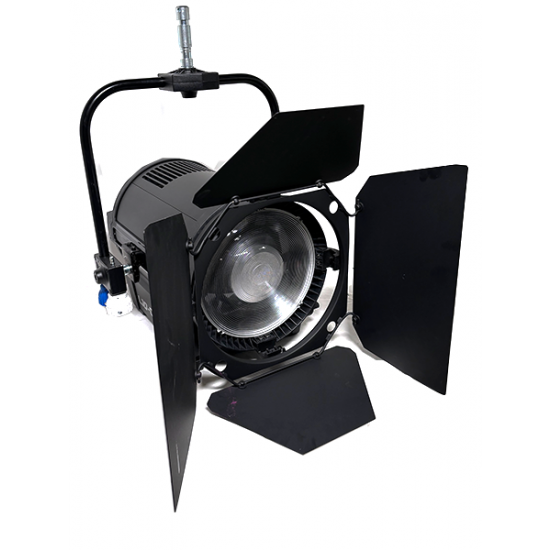

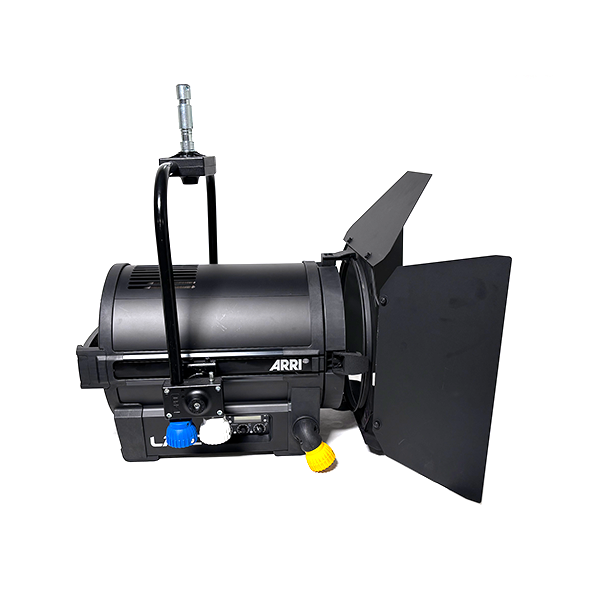

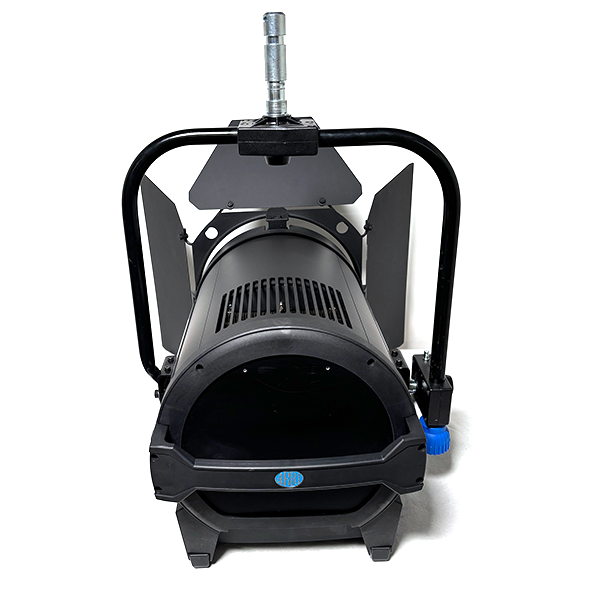

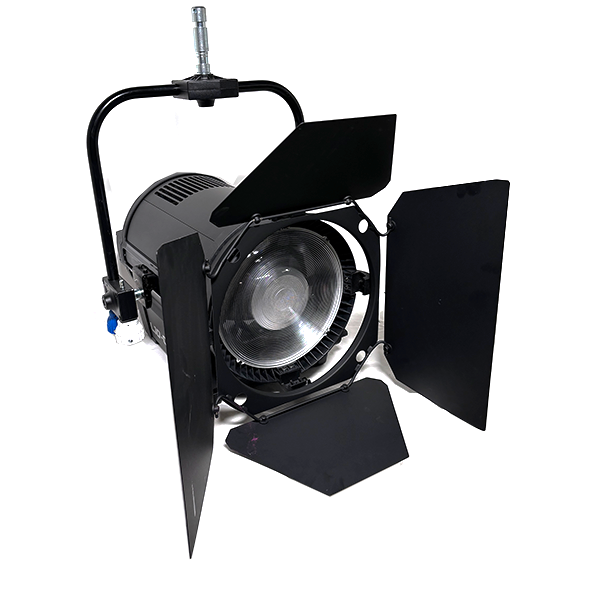

Used | Arri - L10-C

Used | Arri - L10-C (Light Engine 2)

Flightcase: Not included
Accessories: Barndoor + Powercon True1 Cable

The L10 is the brightest and largest L-Series lamphead to date. Its substantial 10" Fresnel lens and powerful output allow for more distant fixture placement and the wrapping of light around objects in a natural and pleasing way. At more than twice the brightness of the L7, the L10 is also one of the brightest LED Fresnels on the market.

Tuneability is the cornerstone of all ARRI LED fixtures and much like the L7 and L5, its smaller counterparts, the L10 is fully color tuneable. With the ability to adjust the color temperature from 2,800 K to 10,000 K, as well as the green/magenta point, users have complete control over the color output of the fixture.

In a robust housing that combines aluminum with high-strength, fiberglass-reinforced thermoplastics, the L10 is designed to withstand the stresses of diverse professional environments, from motion picture sets to television studios and everything in-between. This robust construction allows the L10 to live up to the benchmark of rugged durability set by other ARRI lighting fixtures.

• Category: LED
• Series: L-Series
• Model: L10-C

• Focusable Fresnel optical system
• Light aperture / lens diameter: 274 mm (10")
• Beam angle: 15° to 50° half peak angle

• Lamphead voltage input: 100 - 240 V ~, 50 - 60 Hz
• Power consumption: 510 W Maximum
• Power connection: powerCON TRUE1 (Bare Ends / Schuko / Edison)
• Battery connector: -
• Battery DC voltage range: -

• White light: 2,800 K to 10,000 K continuously variable CCT
• Colored light: Full RGB+W color gamut with hue and saturation control
• Color temperature tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
• Color rendition: CRI average > 95, TLCI average > 91
• Green-Magenta adjustment: Continuously adjustable (Full Minusgreen to Full Plusgreen)
• Dimming: 0 to 100% continuous

• 5-Pin DMX In and Through
• On-board controller
• Mini-USB interface
• Wireless control: Not integrated, via SkyLink
• Remote Device Management (RDM): DMX setup, hour counter and standard RDM commands
• Software / USB: DMX setup, fixture status and firmware upgrade via PC

• Handling: Adjustable sliding stirrup, high-strength tilt lock / pole operation option (pan, tilt, focus)
• Mounting: 28 mm spigot (Junior Pin)
• Tilt angle: +/- 90°
• Housing color: Blue/Silver, Black

• Measurements incl. pin (mm): Manual: 714 x 502 x 560 / Pole Op.: 719 x 480 x 560
• Measurements excl. pin (mm): Manual: 581 x 502 x 560 / Pole Op.: 604 x 480 x 560
Compatibility
